OVERVIEW

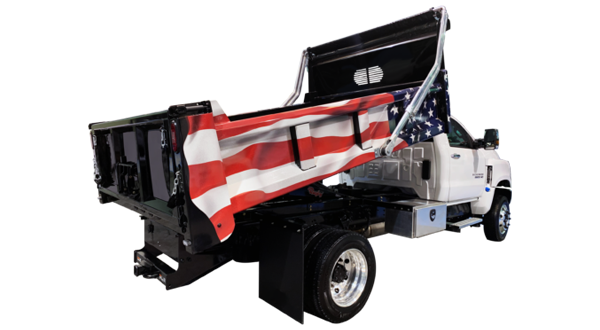

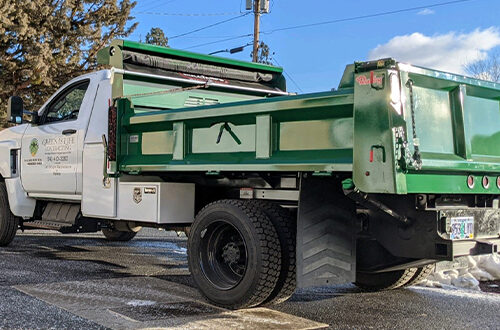

Maximize your payload by matching a Rugby Eliminator Medium Duty dump body with your powerful new cab chassis. The Eliminator Medium Duty has been engineered to haul more when paired with a 22,000 GVWR chassis. Built with a versatile cabshield option, the Eliminator Medium Duty can adapt to fit on any major OEM’s medium duty chassis. Featuring the innvoations and top quality you expect from Rugby, this steel dump body is ready to work for you. These carbon steel units are available in 9′ – 12′ lengths with 20″ side height and 26″ tailgate height.
The Eliminator Medium Duty is built with standard and tall cabshields, dirt shedding sides, full hight corner posts, and the patented EZ-LATCH™ system designed for easy tailgate operation and maximum safety. This body is designed to provide years of service.
Materials
10 ga inner side / 12 ga outer side
10 ga floor (stacked understructure, one-piece floor)
7 ga floor material upgrade available
Specifications
Lengths: 9’7″, 10’7″, 11’7″ or 12’4″
Side height: 20″
Weight: 1,550 – 1,895 lbs
Stacked understructure w/ 5″ structural channel longmembers
Crossmembers 3″ I-Beam on 16″ spacing
Features & Options
Patented EZ-Latch
Fully boxed dirt-shedding top rail
Full height corner posts
Interchangeable tall and standard cabshields
Electric operated tailgate release optional
Option to upgrade to crossmembers on 12″ centers
